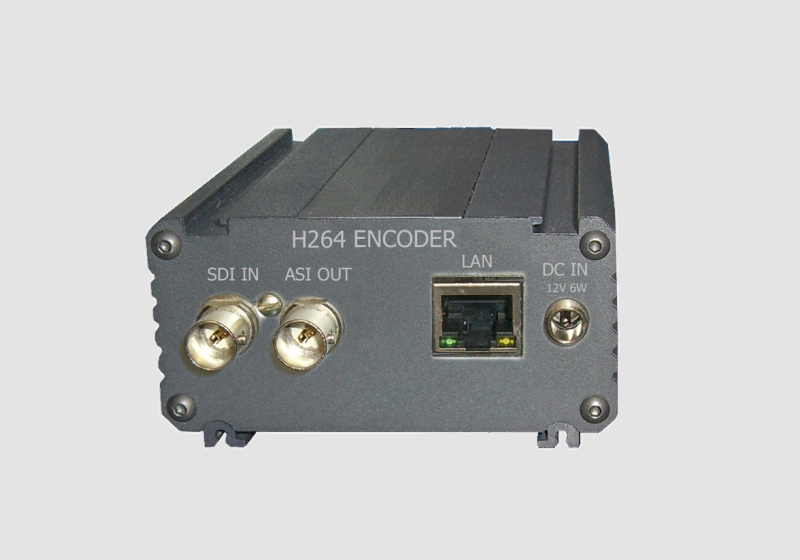

Mini Encoder / Transcoder
Mini Encoder / Transcoder
SPECIFICATION
Video Input
Digital Input: SDI
Level: 800mVp-p (SDI)
Connectors: BNC (75Ω)
Aspect Ratio: 4:3, 16:9
Audio Input
Digital Input: Embedded SDI
Sampling Rate: 48 Khz
Video Encoder
Encoding: MPEG-2 HP@HL, MP@HL , MP@ML
H.264 HP@L4, MP@L3
Encoding Rate: 0,5~15 Mbps
Chroma Format: 4:2:0
Bit Rate Mode: CBR,VBR
Audio Encoder
Sampling Rate: 48KHz
MPEG-1 Layer II 64 -320 Kbps
TS Output
Transport Stream: ASI 1port
Connector: BNC(75Ω)
TS Bit Rate: 0,5~15 Mbps
Packet Format: 188 Byte
IP TS Output and Ethernet control
Ethernet type: 10/100 Base-T (RJ-45)
Format: UDP/IP, RTP/IP
IP Address Format: Multicast, Unicast
TS Bit rate: 0,5~14 Mbps
TS Packet format: 188 Byte
General
Power: 12 V DC
Size: 85*45*103 (mm)
The device can work in two modes  “Encoder” or  “Transcoder”.
The necessary mode is selected by program switching.

The Encoder is intended for real time encoding of SD/HD signal
into MPEG-2 SD or H.264 SD/HD format. The Transcoder is
intended for  real-time  transcoding/ transrating of an  SD/HD  program from  MPEG-2 to H.264 format or  vice versa.

The Encoder/Transcoder can output two independent Transport Streams (TS) which are broadcast simultaneously. One of the
two TS provides high resolution (1920х1080 or less) for high quality broadcasting, the other TS provides low resolution (320х240 or less) for broadcasting to mobile devices or Internet. Low resolution TS can be switched off.

The Encoder/Transcoder enables multiplexing of the two TS onto an ASI output or any of the two IP addresses.


The main features:
Audio is passed trough.
Control and monitoring via LAN (Ethernet).
Full HD 1080i support.
Transcoding of an SD/HD program:from MPEG-2 (SD/HD) to H.264 (SD/HD) format,from H.264 (SD/HD) to MPEG-2 (SD) format
Output interface: DVB-ASI(1) and IP(1)
Simultaneous output of 1xTS (ASI) with UDP/IP or RTP/IP transport stream.
Selectable MPEG-2 SD or H.264 SD/HD real-time video encoding.
Built-in multiplexer allows to generate output TS with transcoded programs and/or original programs which are being applied at the input
HD/SD-SDI/ASI video input.
