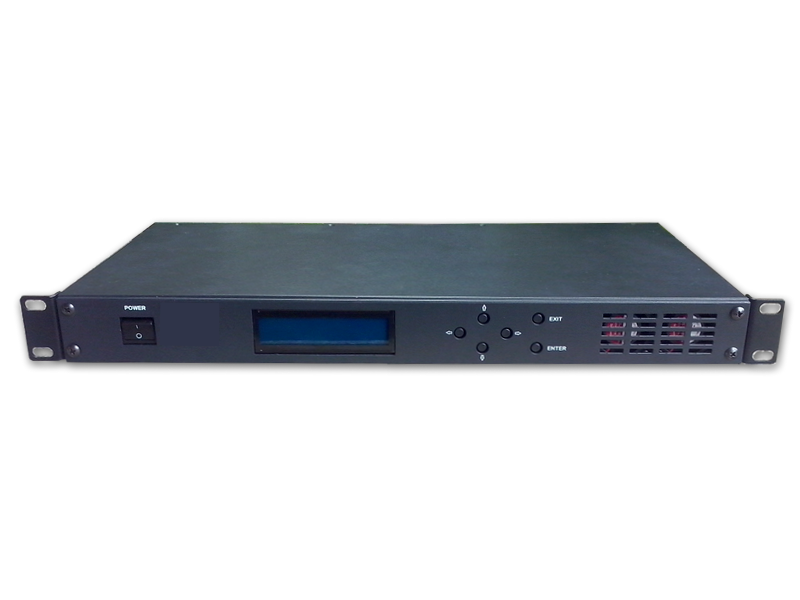

2 Channel Encoder/transcoder MPEG 4/MPEG2 Model М58

MSRP: $1200

SPECIFICATION:
Video Input
Analog Input: two Composite, BNC (75Ω)
Level : 1 Vp-p
Digital Input: two SDI, BNC (75Ω)
Digital Input: two HMDI
Level: 800mVp-p
Aspect Ratio: 4:3, 16:9
Audio Input
Analog Input: 2 Stereo (4 channels, XLR)
Freq. Range: 20Hz ~ 20KHz
Impedance: 600 Ω/ 20KΩ
Digital Input: Embedded SDI
Sampling Rate: 48 KHz
Video Encoder
Encoding : MPEG-2 HP@HL, MP@HL , MP@ML
MPEG-4 H.264 HP@L4, MP@L3
Encoding Rate: 4~15 Mbps
Bit Rate Mode: CBR,VBR
Audio Encoder
Sampling Rate: 48KHz
MPEG-1 Layer II 64 - 320 Kbps
TS Output
Transport Stream: ASI 2 port
Connector: BNC(75Ω)
TS Bit Rate: 0,5~15 Mbps
Packet Format: 188 Byte
IP TS Output and Ethernet control
Ethernet type: 10/100 Base-T (RJ-45)
Format: UDP/IP, RTP/IP
IP Address Format: Multicast, Unicast
TS Bit rate: 0,5~60 Mbps
TS Packet format: 188 Byte
General
Power: ~220V+\-20%;
Power Consumption: Max 10W ;
Size: 19", 1 RU 480*45*180 (mm);
Weight: 3 Kg

The device can work in two modes “Encoder” or “Transcoder”.

The dual channel Encoder is intended for real time encoding of CVBS or SD/HD SDI signals into MPEG-2 SD or H.264 SD/HD format.

The dual channel Transcoder is intended for real-time transcoding/ transrating of two SD/HD program from two Transport Streams (TS) from MPEG-2 to H.264 format or vice versa.

Each channel generates up to two TS. One of the two TS provides high resolution (1920х1080 or less) for high quality broadcasting, the other TS provides low resolution (320х240 or less) for broadcasting to mobile devices or Internet. The Encoder/Transcoder enables multiplexing of the four TS onto any of the two ASI outputs or any of the four IP addresses. Built-in multiplexer: each output can be configured to carry either a Single Program Transport Stream (SPTS), or a Multi Program Transport Stream (MPTS).

SPECIFICATION

Input	Video	2×SDI /2×CVBS, and 2×HMDI input
	Audio	4×XLR, 1×HMDI, 2×SDI
Video	Resolution	Input	Output
		1080i@60	1920x1080,1440x1080, 960x1080, 720x1080,1280x704,1280x768, 1024x768,720x576,704x576, 544x576, 480x576, 720x480, 704x480,640x480,544x480, 480x480,480x256, 320x224,240x180
		1080i @59.94
		1080i @50
		1080p@50(SDI only)
		576i @50
		480i @59.94
	Encoding	MPEG-2 HD/SD;H.264 HD/SD
	Bit-rate	4Mbps~15Mbps
	Rate Control	CBR/VBR
	GOP Structure	IPB, IBBP, IPPP.
	Aspect Ratio	SD- 4:3; 16:9; HD-16:9

Output		2 ASI, 1 10/100 Base-T Ethernet
Video	Resolution	1920x1080,1440x1080,960x1080,720x1080,1280x704,1280x768, 1024x768,720x576,704x576,544x576,480x576,720x480,704x480, 640x480,544x480,480x480,480x256,320x224,240x180
	Encoding	MPEG-2/H.264; H264/MPEG2
	Bit-rate	4 -15 Mbps
	Aspect Ratio	SD- 4:3; 16:9; HD-16:9

Audio	Encoding	MPEG-1 Layer II, Audio output level adjustment +6/-6.7 db
	Sampling rate	48KHz
	Resolution	24-bit
	Bit-rate	64Kbps~384Kbps
Delay		менее 1сек
Stream output		2×ASI output ports, BNC interface
		MPTS/SPTS over UDP/RTP, 10/100 Base-T Ethernet interface (UDP/RTP multicast/unicast) Rj45 interface
		Language: English-Russian
		Ethernet software upgrade
General	Dimensions	440mm×190mm×44mm (W × D × H)
	Approx weight	3.5Kg
	Power requirement	AC 220V±10%,50Hz
	Power consumption	17W

The main features:

Encoding : MPEG-2 HP@HL, MP@HL , MP@ML MPEG-4 H.264 HP@L4, MP@L3.
TS Bit Rate: 0,5~15 Mbps.
User selectable resolution and bit rate.
Supports OTA, EPG, DVCrypt CAS 3000/10000/100000 subscribers in transcoder
Two SDI / two CVBS/two HMDI inputs.
Transcoding of an SD/HD program
Overlaying titles on the signal.
Selectable MPEG-2 SD or H.264 SD/HD real-time video encoding.
The possibility of transferring 2 audio channels in the first encoder.
Transcoding 2 programs in the stream.
