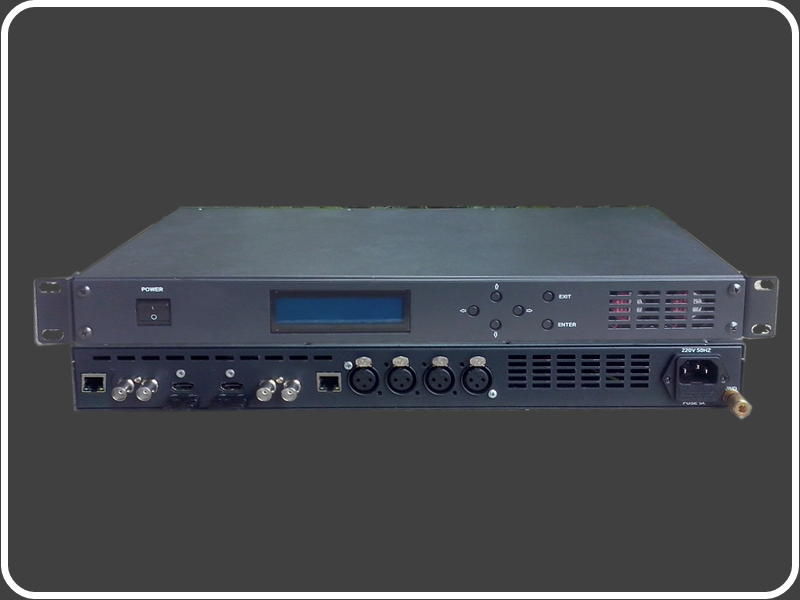

2 Channel Encoder/transcoder MPEG 4/MPEG2 Model М58 PRO

MSRP $1900

2 Channel Encoder/transcoder MPEG 4/MPEG2 Model М58 PRO
SPECIFICATION:
Video Input
Digital Input: two SDI, BNC (75Ω)
Digital Input: two HMDI
Level: 800mVp-p
Aspect Ratio: 4:3, 16:9
Audio Input
Analog Input: 2 Stereo (4 channels, XLR)
Digital Input: Embedded SDI
Sampling Rate: 48 KHz
Video Encoder
Encoding : MPEG-2 HP@HL, MP@HL , MP@ML
MPEG-4 H.264 HP@L4, MP@L3
Encoding Rate: 4~15 Mbps
Chroma Format: 4:2:0
Bit Rate Mode: CBR,VBR
Audio Encoder
Sampling Rate: 48KHz
MPEG-1 Layer II 64 - 320 Kbps
TS Output
Transport Stream: ASI 2 port
Connector: BNC(75Ω)
TS Bit Rate: 0,5~15 Mbps
Packet Format: 188 Byte
8 IP Output and Ethernet control
Ethernet type: 100/1000mbit/s (2 RJ-45)
Format: UDP/IP, RTP/IP
IP Address Format: Multicast, Unicast
TS Bit rate: 0,5~60 Mbps
TS Packet format: 188 Byte
2 ASI Output.

The dual channel Encoder is intended for real time encoding of CVBS or SD/HD SDI signals into MPEG-2 SD or H.264 SD/HD format.
The dual channel Transcoder is intended for real-time transcoding of two SD/HD program from two Transport Streams (TS) from MPEG-2 to H.264 format or vice versa.
Each channel generates up to two TS. One of the two TS provides high resolution (1920х1080 or less) for high quality broadcasting,
the other TS provides low resolution (320х240 or less) for broadcasting to mobile devices or Internet.
The Encoder/Transcoder enables multiplexing of the four TS onto any of the two ASI outputs or any of the 8 IP addresses.
Built-in multiplexer: each output can be configured to carry either a Single Program Transport Stream (SPTS), or a Multi Program Transport Stream (MPTS).



Specification

 Inputs

Video

Digital video inputs

2 x SDI (BNC, 75Ω) 800mVp-p (switchable)

2 x HDMI(Type A connector) (switchable)

Video inputs resolution

1080p@ (50/59/60)

1080i @ (50/59/60)

1080p @ (25/29/30)

720p @ (50/59/60)

576i @50

480i @59.94

Encoding

MPEG-2 SD; H.264 HD/SD

Bit-rate

0,5~15Mbps

Rate Control

CBR / VBR

GOP Structure

IPB, IBBP, IPPP

Chroma

4:2:0;

Composite analog Inputs

2x BNC, 75Ω, Level 1 Vp-p

 Analog Audio Inputs

Connectors

2 x Stereo (2 channels, XLR) Connector.

Freq. Range

20Hz ~ 20KHz

Impedance

600 Ω/ 20KΩ

 Digital Audio Inputs

 Sources

Embedded SDI or HDMI

Sampling Rate

48 KHz

 Outputs

Video

Resolution

1920x1080, 1440x1080, 960x1080, 720x1080, 1280x704, 1280x768, 1024x768, 720x576, 704x576, 544x576, 480x576, 720x480, 704x480, 640x480, 544x480, 480x480, 480x256, 320x224, 240x180

Encoding

MPEG-2/H.264; H264/MPEG2; H264/H264; MPEG2/MPEG2

Bit-rate

0,5~15Mbps

Aspect Ratio in SD mode

4:3 or 16:9

Audio

Encoding

MPEG-1 Layer II, Audio level adjustment +6/-6.7 db

Sampling rate

48KHz

Resolution

24-bit

 Bit-rate

64Kbps~384Kbps

Stream output/Configuration

2×ASI output, 2 -BNC

8xIP, MPTS/SPTS over UDP/RTP

1000 Mbit/s Stream Ethernet interface(RJ45)

UDP/RTP multicast /unicast

10/100 Mbit/s Control Ethernet interface(RJ45)

General

Dimensions

1RMU - 440mm x 190mm x 44mm (W x D x H)

Approx weight

3.5Kg

Power requirement

 External power supply +12 V (not included), 17 W





The main features:

-Encoding : MPEG-2 HP@HL, MP@HL , MP@ML MPEG-4 H.264 HP@L4, MP@L3.
-TS Bit Rate: 0,5~15 Mbps.
-User selectable resolution and bit rate.
-Supports OTA, EPG, DVCrypt CAS 3000/10000/100000 subscribers in transcoder
-Two SDI / two CVBS/two HMDI inputs.
-Transcoding of an SD/HD program
-Overlaying titles on the signal.
-Selectable MPEG-2 SD or H.264 SD/HD real-time video encoding.
-The possibility of transferring 2 audio channels in the first encoder.
-Transcoding 2 programs in the stream.
